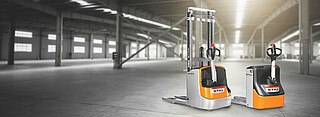

High Lift Pallet Truck EXV 10-14C
Power meets innovation
- Optimum utilisation of storage area: high storage compaction due to high residual load capacity
- Always safe with OptiSpeed: Travel speed adapts to tiller angle
- Impressive reloading of pallets: fast operation due to compact dimensions
Request to: EXV 10-14C
Please fill out the form below. We will get back to you as soon as possible.
Everything you need to know about EXV pallet stackers fitted with unique OptiSpeed tillers. The speed of this manually guided warehouse assistant is automatically modified depending on the distance between the operator and the truck. Starting with the unique tiller ergonomics: a lot of thought has gone into the positioning of the control elements. They enable intuitive one-handed operation for all operators, no matter the size of the hand and whether it is the right or left. Meanwhile the LED display on the tiller head allows the operator to keep an eye on all relevant truck information.
And as if that wasn’t enough: the truck is particularly impressive on slopes due to its stability and automatic stopping capability whenever the tiller is released. Sophisticated lower damping which smoothly slows down the lowering speed shortly before floor contact, protects goods during the storage processes. The EXV makes it possible for goods to be more densely packed in storage and easily removed than ever before. Its high residual load capacity and extraordinary mobility make this compact pallet truck unbeatable when it comes to moving a large quantities of goods quickly and safely in confined spaces using a manual device – regardless of being moved around the pre-storage area or placed onto shelving.
The EXV 10-14C in detail
- Flexible, intuitive operation of all control elements on the tiller head with one hand, without the need to change grip, naturally for both left- and right-handed operators
- Reliable availability thanks to large colour display with battery status display
- Optimal ergonomics and reduced physical strain for the operator thanks to electric driving, lifting and lowering functions
- Clear view through the mast to the fork tips facilitates hassle-free pallet handling
- Unbeatable handling performance: powerful motor, high residual load capacity and responsive control elements
- With iGo systems vehicles, additional vehicles can be added at any time so as to expand transportation capacity
- Maximum driver safety thanks to the low-entry truck frame and load backrests
- Initial lift ensures stable and low-vibration driving performance, even if there are slight gradients or unevenness in the floor
- Safety for man and machine: OptiSpeed tiller and automatic stop mechanism when the tiller is released
- Safe manoeuvring even in restricted space thanks to creep speed mode
- Information on the lift height at a glance – on the coloured load capacity display
- Estimate the load correctly: Dynamic Load Control can be used to estimate the load and the corresponding maximum lift height (for the EXV 14-20)
- EXV iGo systems improves transport quality and eliminates the risk of injury and damage to people, trucks, warehouse equipment and goods thanks to smart safety functions
- Compact information: all relevant truck information is available at a glance in the STILL neXXt fleet web application.
- Innovative STILL FleetManager keeps driver and truck safe: operator management and shock detection as well as damage and cost minimisation thanks to access protection
- Optimisation of the goods flow thanks to straightforward connection to existing material flow management systems via MMS provision
- Different iGo systems trucks can be combined with one another, and with manual transport systems and stationary automation systems
- Power meets safety: the four-wheel chassis ensures outstanding stability and effective performance
- Reliable excellent performance thanks to the powerful yet lowmaintenance AC motor
- New level of precision and safety for user and load thanks to the responsive proportional valve control
- Optimal availability, low-maintenance and high performance thanks to the optional lithium-ion technology
- Smooth and precise electrical steering (for the EXV 14-20)
- Software-based transport controls for the EXV iGo systems enable optimal fleet utilisation, whilst guaranteeing a high level of process reliability, traffic management, visualisation of truck movements, battery charge status monitoring and reduced error rates – the flow of materials and information is always reliable and mapped comprehensively and transparently
- Precision even in confined spaces thanks to compact dimensions
- Well-equipped for a wide range of applications with different driving programmes
- Ready for use at all times: the battery can be charged and interim charged flexibly from any location without the need for a fixed charging station
- iGo systems trucks can also be operated manually if required: this increases flexibility, safeguards process and material flow and enables easy access to goods
Sharpening all senses: we can support you with our wide range of smart driver assistance systems and functions which will make your day-to-day work significantly easier. You will be able to drive in a safer, more comfortable, efficient and fatigue-free manner – in every driving situation.
STILL SafetyLight 4plus
The visual warning system for fewer accidents
The blue warning light, STILL SafetyLight 4plus, significantly increases work safety in areas which are confusing or full of bends. The blue light spots are projected approx. 5 m in front of and behind the truck and warn people about the approaching truck to prevent impending collisions.
Keeping the goods in place: the load backrest stabilises the transported goods at the fork carriage back so that they can be securely transported from A to B.
Shock detection (with or without FleetManager 4.x)
Where shock detection is used without FleetManager, an accelerometer detects mechanical shock events indicative of improper use. Once shocks have been detected, the truck is set to creep speed. The supervisor can turn the speed restriction back off again by entering the 'Fleet manager PIN' in the Easy Control Display.
As no additional components are required, this is a cost-effective option for preventing damage to the truck and goods. Where shock detection is used with FleetManager, should vibrations exceed a certain level, the load will be registered as unusual and this information will be shared with the fleet manager.
As well as shocks, these notifications can also include information about the speed of travel, the time, the truck and the driver.More information
Access authorisation (with Fleet Manager 4.x)
Access control perfectly integrated into the truck with different types of access authorisation for one or more trucks: with FleetManager 4.x you are free to choose the type of access authorisation for one or more trucks: chip, FleetManager card, your personal plant ID card or a PIN.
Thanks to the smart auto-logout function, the trucks are automatically deactivated after a freely selectable period of time – this also increases safety.
Access authorisation (without FleetManager)
If desired, you can limit the usage of your forklift truck to specific persons or groups of persons via access authorisation. Select whether the release of the truck should be carried out using a key switch or via a digicode system with ten configurable access codes (or PINs).Learn more
Access authorisation (without FleetManager 4.x) with PIN
Digicode systems (PIN) are an easy way to prevent unauthorised use of the truck. The truck can be started up quickly and easily, simply by entering the PIN code. This allows the user to limit access authorisation to specific individuals or groups. It is possible to configure up to ten PIN codes.More information
Works at any angle
Depending on the tiller angle, the OptiSpeed tiller steering automatically ensures that the maximum driving speed is adapted to the angle. If the angle becomes sharper, the truck decelerates automatically. The tiller steering helps to ensure safe movement even in tight spaces.
The operator is thus able to steer easily and work ergonomically.
Driver profile via FleetManager
Who can use which forklift truck for which area of application? How fast may a certain driver travel in the industrial truck?
The solution: our smart driver profiles in FleetManager 4.x. This web-based application allows the features of the truck to be adapted to the operator’s requirements, such as a reduction in travel, lifting or tilting speed or automatic activation of the lights.More information
The right driving programme for all requirements: the operator can choose between three established and two freely configurable driving programmes in the three operating modes: Blue-Q, normal and sprint mode. The driving programmes can be chosen according to the situation in order to achieve the maximum performance or energy efficiency.
Intelligent autopilot: the forklift’s Blue-Q (blue button) efficiency mode is activated at the touch of a button. An intelligent optimisation characteristic in the drive saves energy precisely where it is not impacted by the work process.
Up to 10% savings in energy consumption depending on the use profile and forklift equipment.
Lift-independent speed reduction
To increase safety during storage and picking operations, the driving speed reduces automatically from a lifting height of 300 mm. If the forks are raised above the "desired value of up to 500 mm" during the drive, the speed of the forklift truck is also reduced automatically.
To stop feet getting caught under tires – a rubber lip can be adhered to pedestrian vehicles for the protection of feet. An optional foot guard with a contact strip is available as a special feature which makes sure that the truck stops upon contact.
Load capacity display
Stability at all times: the optional load capacity display shows the user the current lift height and the associated residual load capacity at all times. The load capacities and lift heights are displayed on the coloured signs attached directly to the mast.
The document provided for download is the updated version of the operating instructions for the standard truck. It does not include descriptions of customer options (Customer Option). For a concrete truck, please request the respective specific manual according to the serial number and the year of production from the STILL spare parts service.
Maximum capacity (kg)
Maximum lift height (mm)
Travel speed (km/h)
Battery voltage (V)
|EXV 10 Basic / Li-Ion||1.000||1.912||6.0||24|
|EXV 10 / Li-Ion||1.000||4.224||6.0||24|
|EXV 12 / Li-Ion||1.200||4.386||6.0||24|
|EXV 12i / Li-Ion||1.200||4.386||6.0||24|
|EXV 14 C / Li-Ion||1.400||5.466||6.0||24|
|EXV 14i C / Li-Ion||1.400||5.466||6.0||24|
